Swinging Ladder Dredges: Precision in Confined Spaces
The Swinging Ladder Dredge is an innovative Ellicott design created to overcome the limitations of conventional dredging in tight areas and where the use of swing wires is not practical – such as in channels with high volumes of vessel traffic. This specialized dredge allows for efficient, wide-cut excavation while the main hull remains anchored.
This design is perfect for projects that demand high precision and low environmental impact, making it ideal for lakes, reservoirs, marinas, and smaller river systems.
Explore Our Dredges
Most models normally available from stock

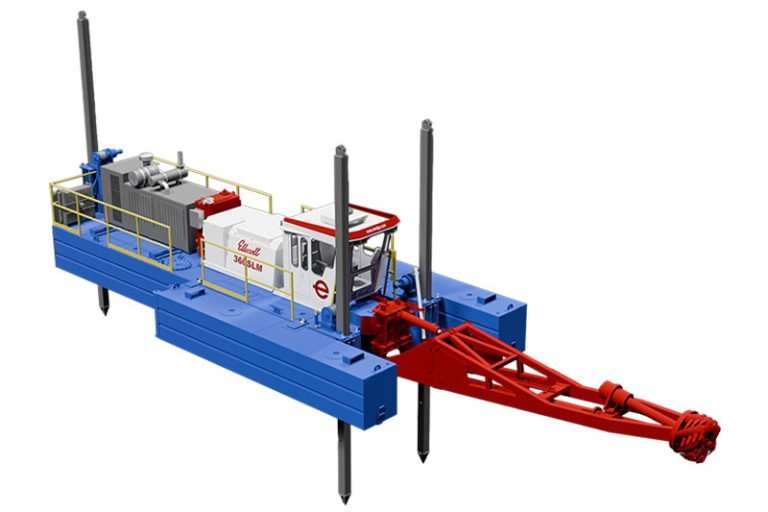

Series 360SLM Swinging Dragon® Dredge
Compact swinging ladder dredge: Ideal for marinas and small canals.
Maximum Dredging Depth: 15′ (4.5 m)

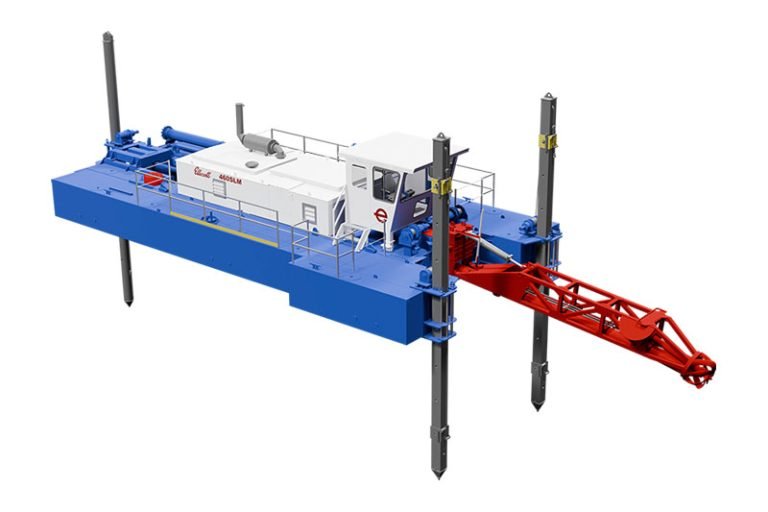

Series 460SLM Swinging Dragon® Dredge
Powerful swinging ladder dredge: Ideal for canals and restoration.
Maximum Dredging Depth: 15′ (4.5 m)

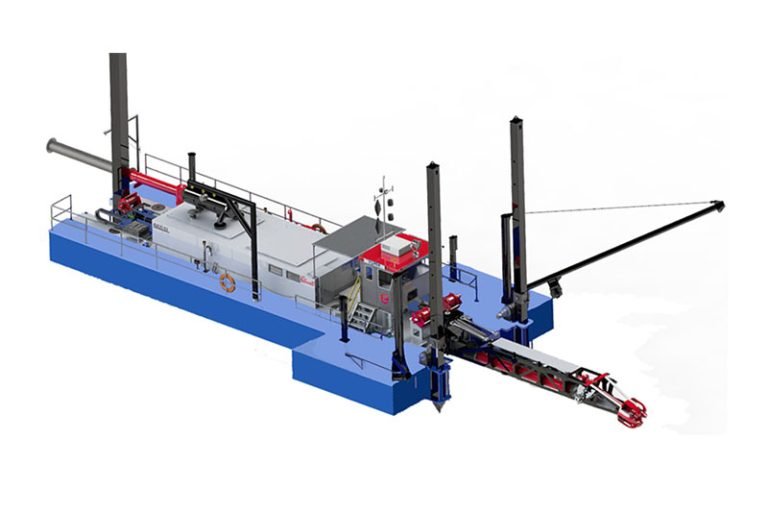

Series 860SL Swinging Dragon® Dredge
Hybrid dredge: Ideal for canals, reservoirs and vegetation control.
Maximum Dredging Depth: 30′ (9.1 m)
The Swinging Ladder Advantage: Maneuverability and Control
- Targeted Precision: The ladder swings from a central pivot point using powerful hydraulic cylinders, covering a wide path with highly controlled movements. This allows operators to remove specific "hot spots" of silt or contaminated material without disturbing surrounding areas.
- Maximized Production in Restricted Areas: Since the entire dredge hull does not need to move for each swing, the Swinging Ladder saves time and maximizes the cutting width in narrow channels or small ponds.
- Simple Maintenance: The dredge pump is typically mounted on the hull (above water), making it easy to access for routine maintenance and component replacement.
- Minimal Turbidity: The controlled, deliberate action of the swinging ladder system is known for reducing water disturbance, a critical factor in environmentally sensitive or shallow locations.
Find Your Perfect Fit
Ready to move more material with greater precision? Speak with an Ellicott expert about integrating a Swinging Ladder Dredge into your next project.
Ellicott’s Swinging Dragon® models are recognized worldwide for their reliability and agility. Whether you are performing maintenance in a small harbor or desilting a reservoir, this dredge provides superior control and production.
